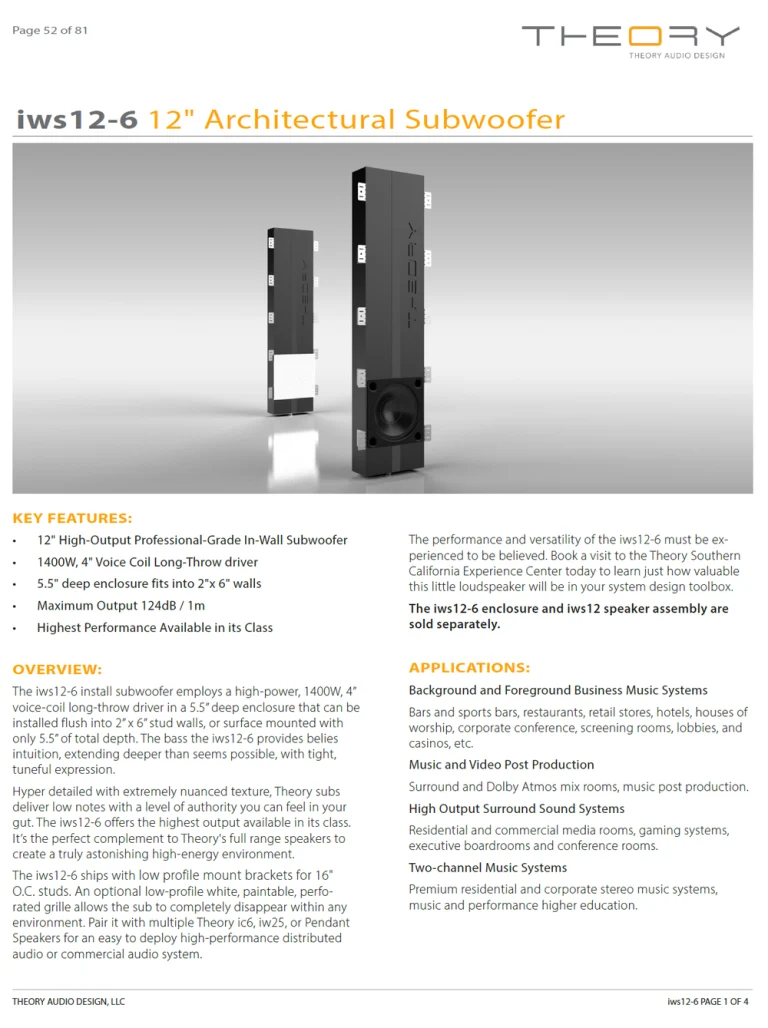

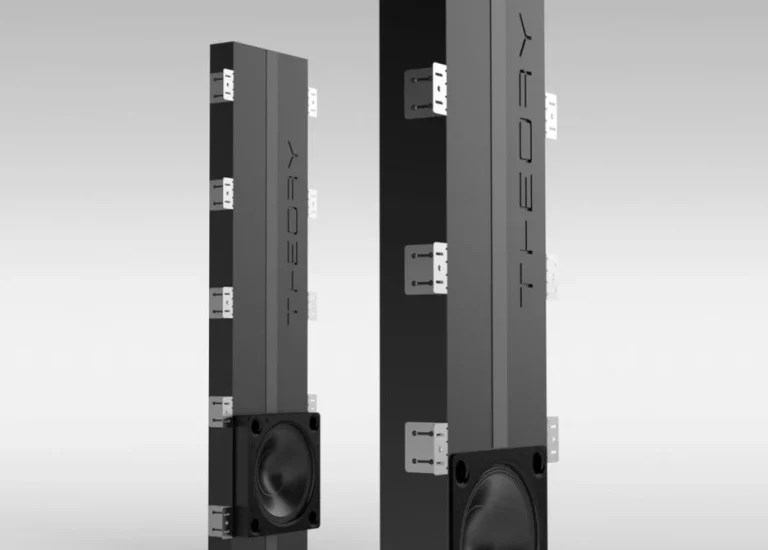

iws12-6 High Output Architectural Subwoofer

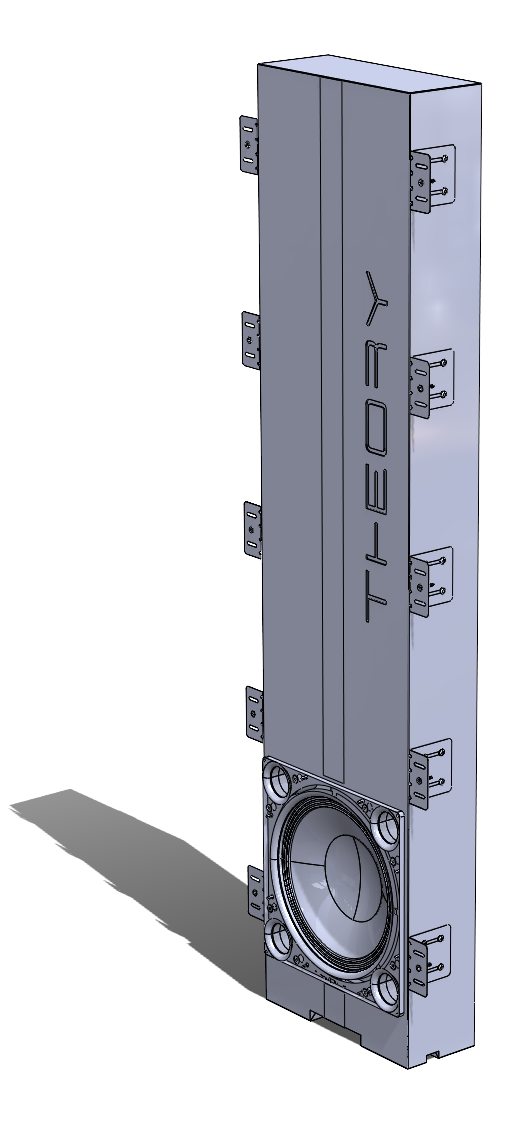

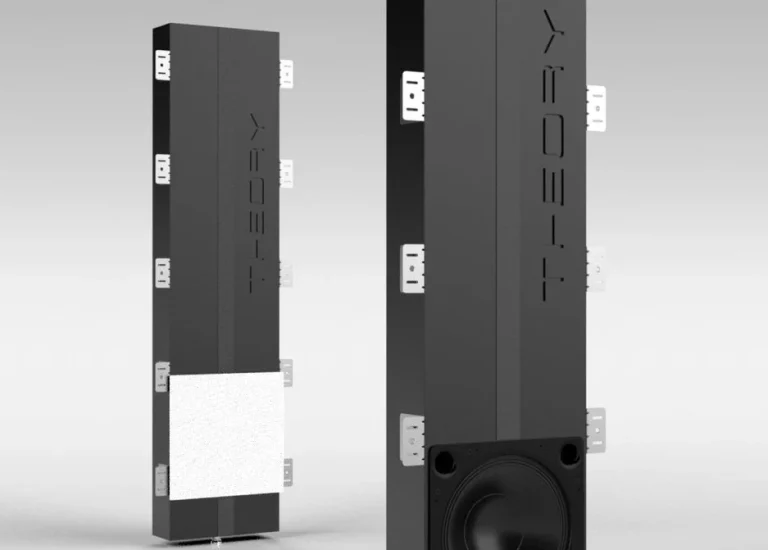

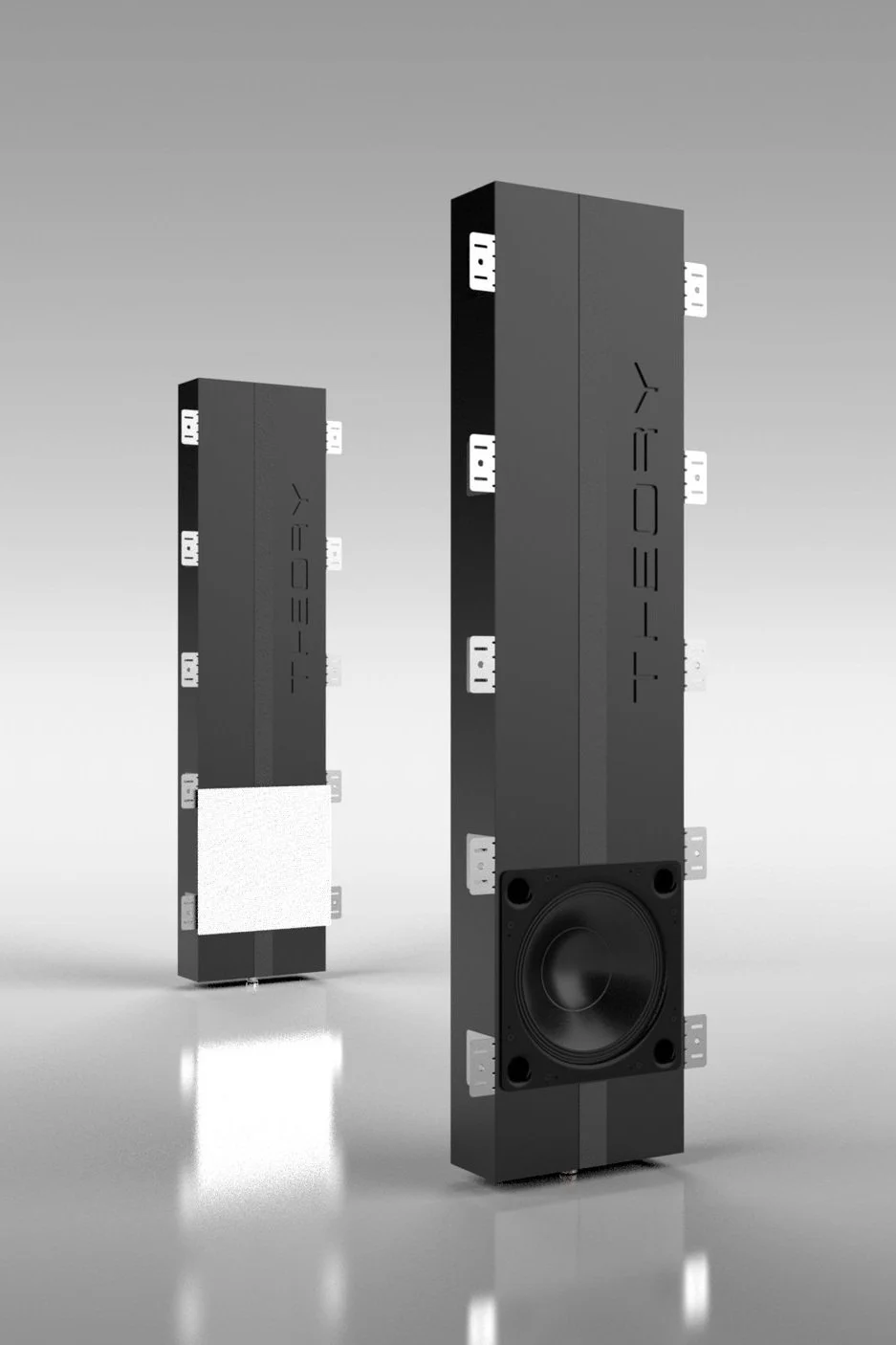

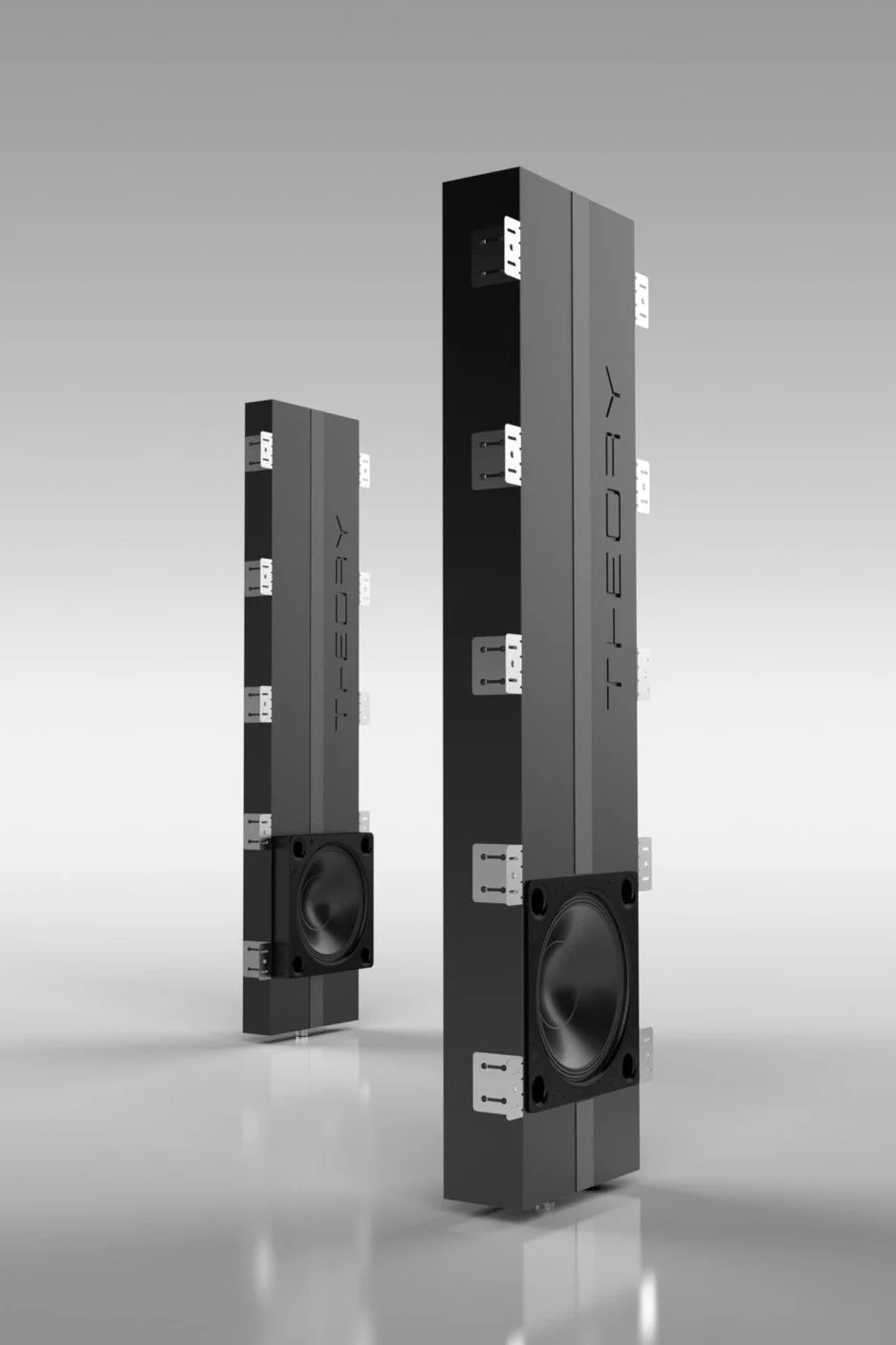

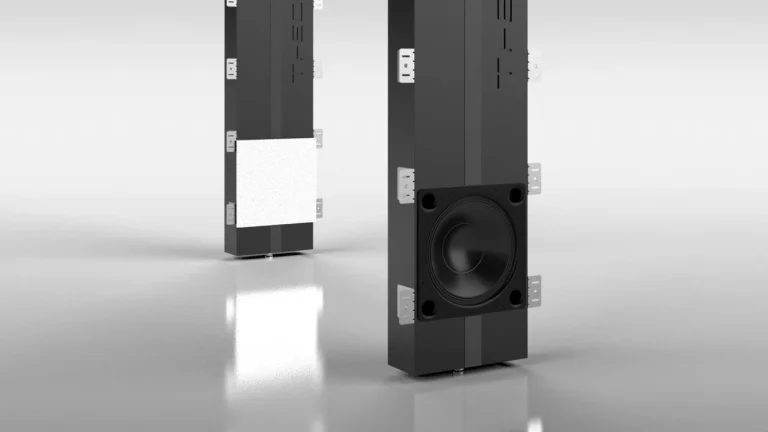

The iws12-6 install subwoofer employs a high-power, 1400W, 4” voice-coil long-throw driver in a 5.5” deep enclosure that can be installed flush into 2” x 6” stud walls, or surface mounted with only 5.5” of total depth. The bass it provides belies intuition, extending deeper than seems possible, with tight, tuneful expression. It’s the perfect complement to Theory Professional full range speakers to create a truly astonishing high-energy environment.

*iws12-6 enclosure and iws12 speaker assembly are sold separately.

iws12-6 SPECIFICATIONS

Description:	12” High-Output In-Wall Subwoofer for 2″ x 6″ walls

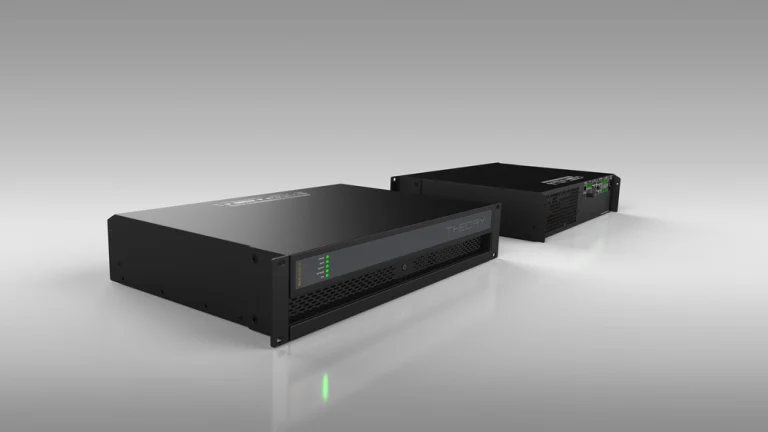

Operation:	Passive, Requires 1 Theory ALC Amp channel
DSP Requirements:	Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers:	1 x 12″ Theory 1400W 4” Voice Coil Long Throw Woofer
Enclosure:	Multi Plywood
Terminals:	Twin Spring-Loaded Push Terminals
Mounting Points:	Low-Profile Steel Angle Mounting Brackets (10x)
Outdoor Capability:	Indoor Use Only
Bandwidth:	24Hz -125Hz, – 3dB; 18Hz, -10dB
Sensitivity:	95.5 dB
Power Handling:	700W (AES) 1400W (Continual); 2800W (Peak)
Minimum recommended Power:
Max Output:	124 dB SPL / 1m (AES) 127dB SPL / 1m (Continuous)
Nominal Impedance:	8-ohms
Colors:	Black, White Perforated Metal Grille Optional

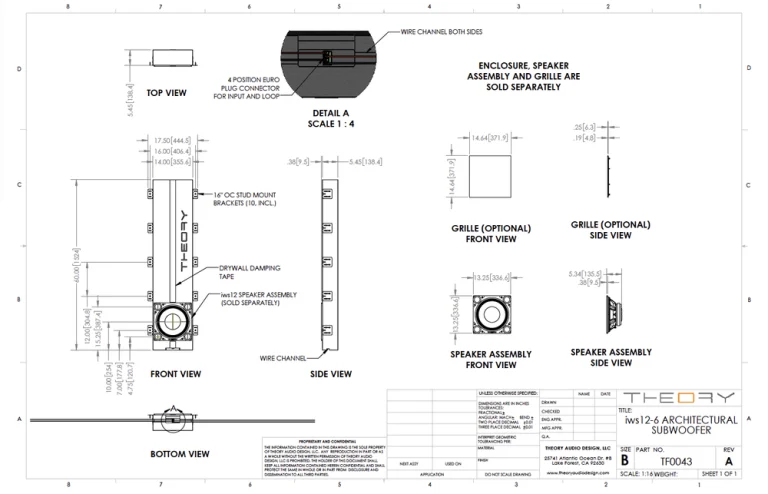

Dimensions:	Enclosure Only: 60″ H x 14″ W x 5.5″ D (1524mm H x 356mm W x 140mm D) Enclosure w Speaker Assembly: 60″ H x 14″ W x 5.9″ D (1524mm H x 356mm W x 150mm D)
Total Installed Depth:	5.5″ (140mm)
Max. Wall Thickness:	N/A
Net Weight:	49 lbs. (22.2 kg)
Included Accessories:	Low Profile Angle Mount Brackets for 16″ O.C. Studs

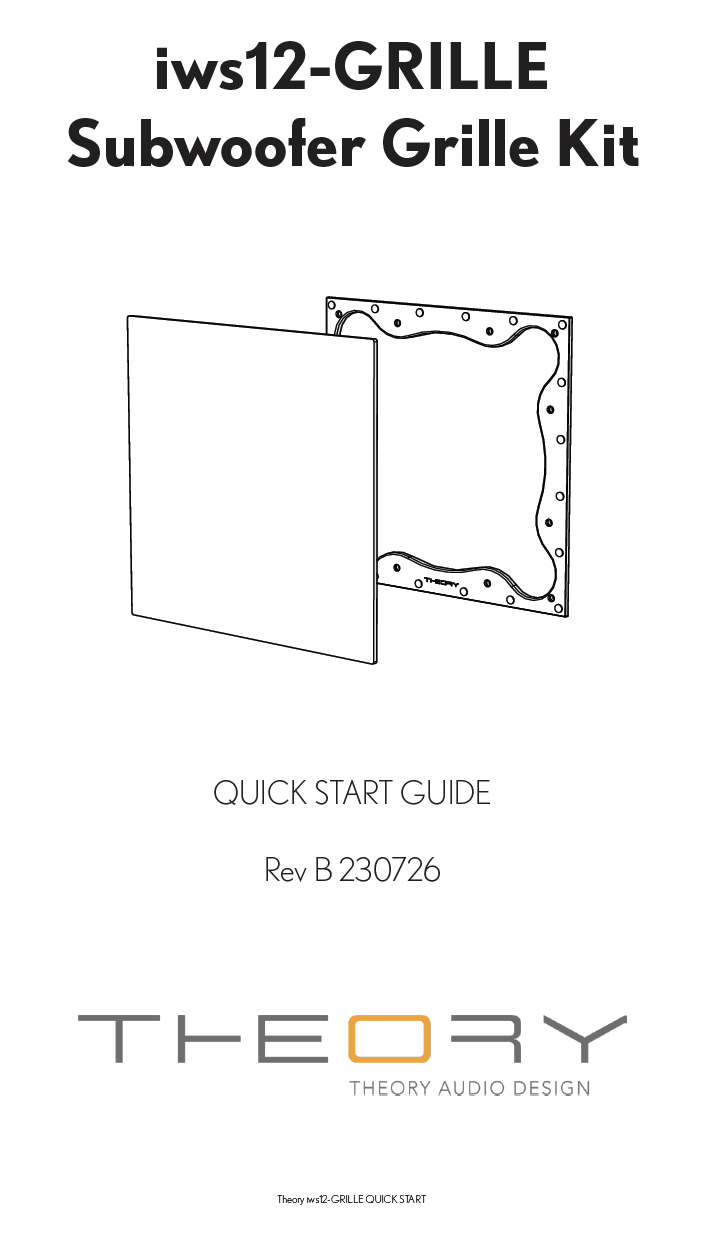

Optional Accessories:	White Paintable Perforated Low-Profile Grille
