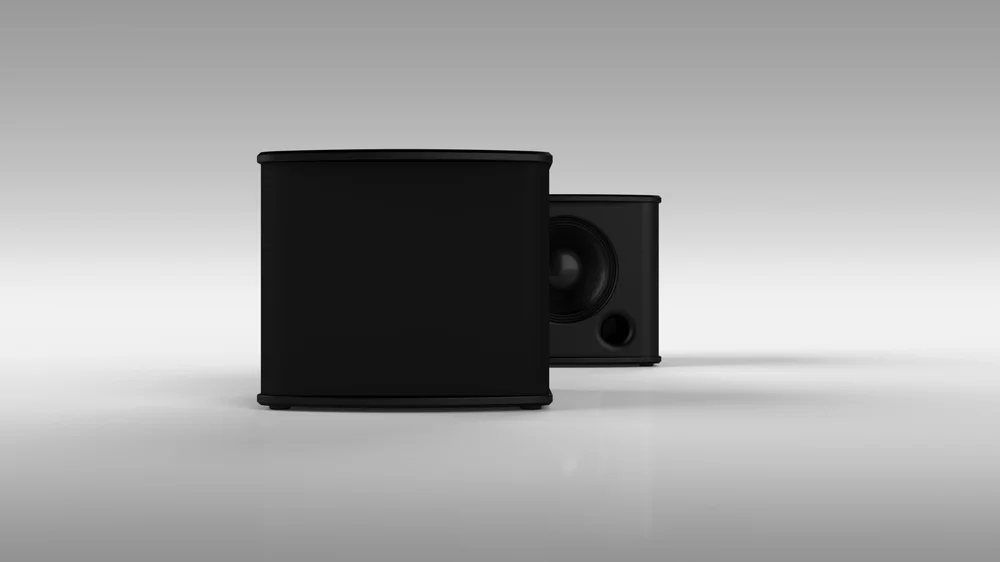

The sub12 passive in-room subwoofer employs a high-power, 1000W, 3” voice-coil, long-throw 12” driver. With a maximum output of 122dB the bass the sub12 provides belies intuition, extending deeper than seems possible, with tight, tuneful expression. It’s the perfect in-room subwoofer complement to Theory Professional full range speakers to create a truly astonishing high-energy environment.
| Description: | High Output Passive Subwoofer System |
| Operation: | Passive, Requires 1 Theory Loudspeaker Controller Amp Channel |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 1 x 12″ Theory High-Output Woofer with 3-Inch Voice Coil |
| Enclosure: | Painted HDF Enclosure, Fabric Grille |
| Terminals: | Twin Spring-Loaded Push Terminals |
| Outdoor Capability: | Indoor Use Only |
| Bandwidth: | 22Hz – 125Hz (-6dB) |
| Sensitivity: | 94dB SPL / 1m |
| Power Handling: | 500W (AES); 1000W (Continuous); 2000W (Peak) |
| Minimum Recommended Power: | 250W |
| Maximum Output: | 122dB / 1m (based on AES power rating) 128dB SPL / 1m (peak) |
| Nominal Impedance: | 4-ohms |
| Colors: | Black |
| Dimensions: | 17.8″ H x 20.5″ W x 17.8″ D (452mm H x 521mm W x 452mm D |
| Net Weight: | 61 lbs. (27.7 kg) |
| Included Accessories: | Black Fabric Grille |
