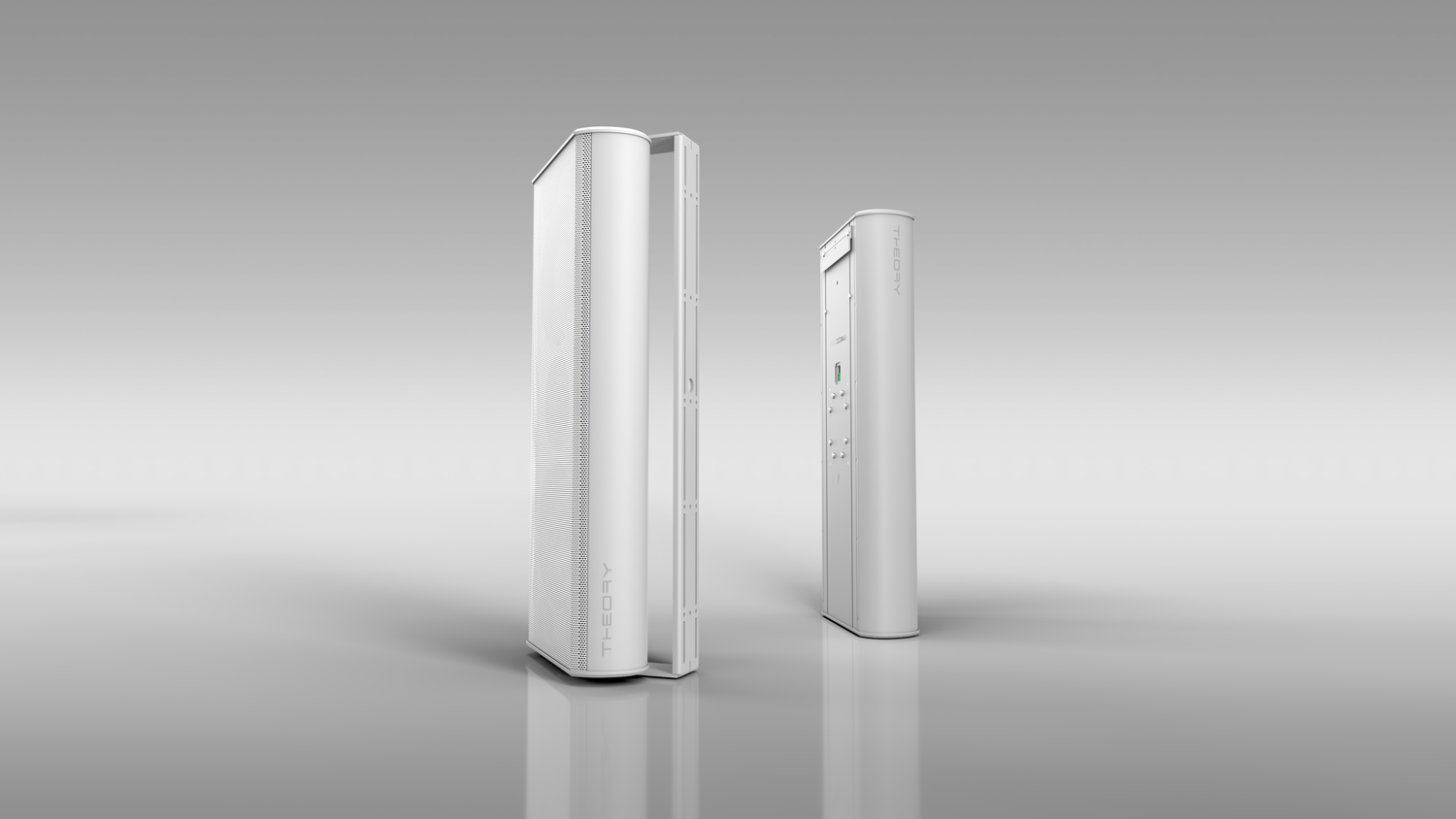

sb210aw High-Output Multi-Use All-Weather Loudspeaker

You have never had such a capable, slender, high-output loudspeaker in your system design toolbox before.

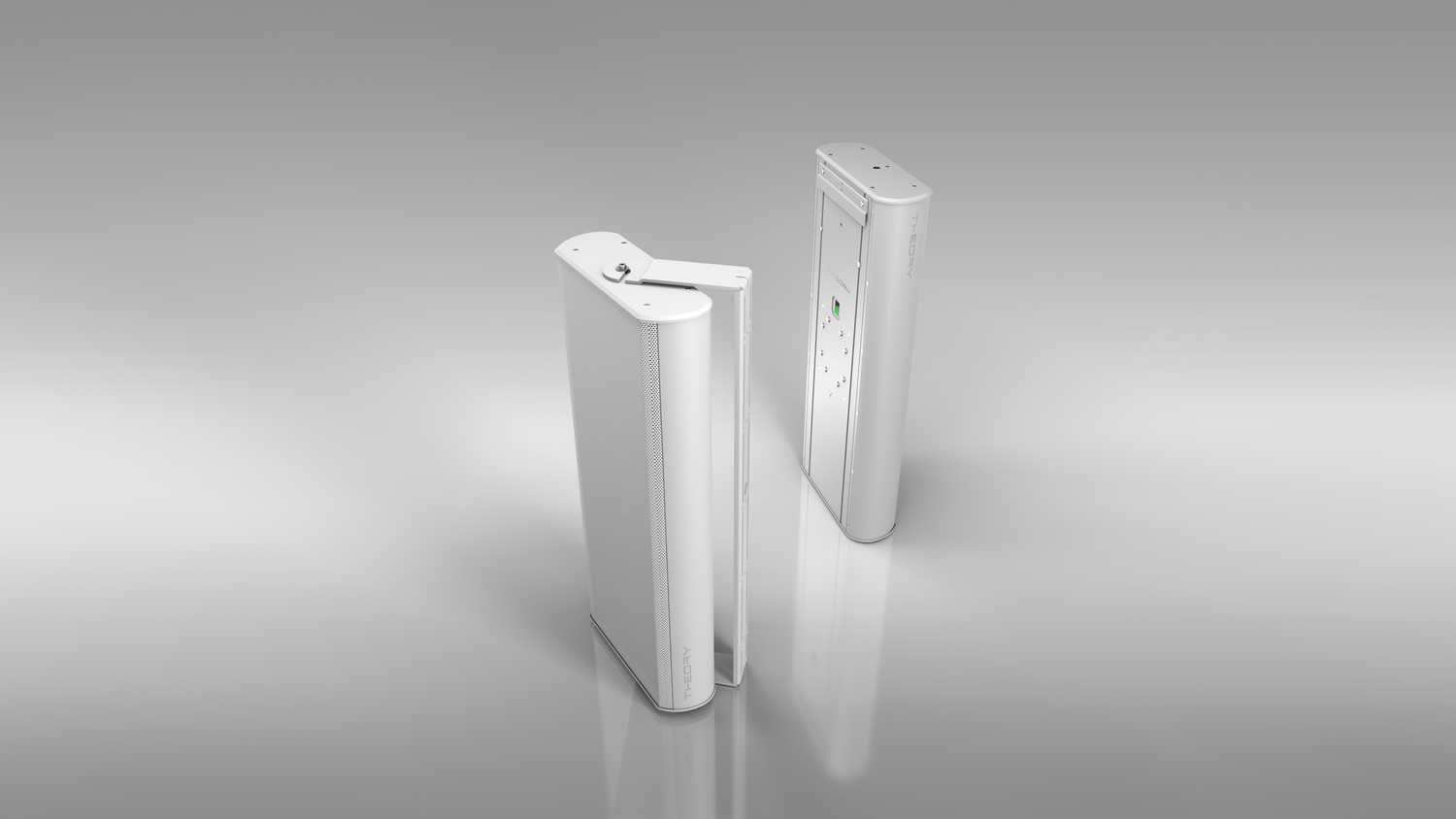

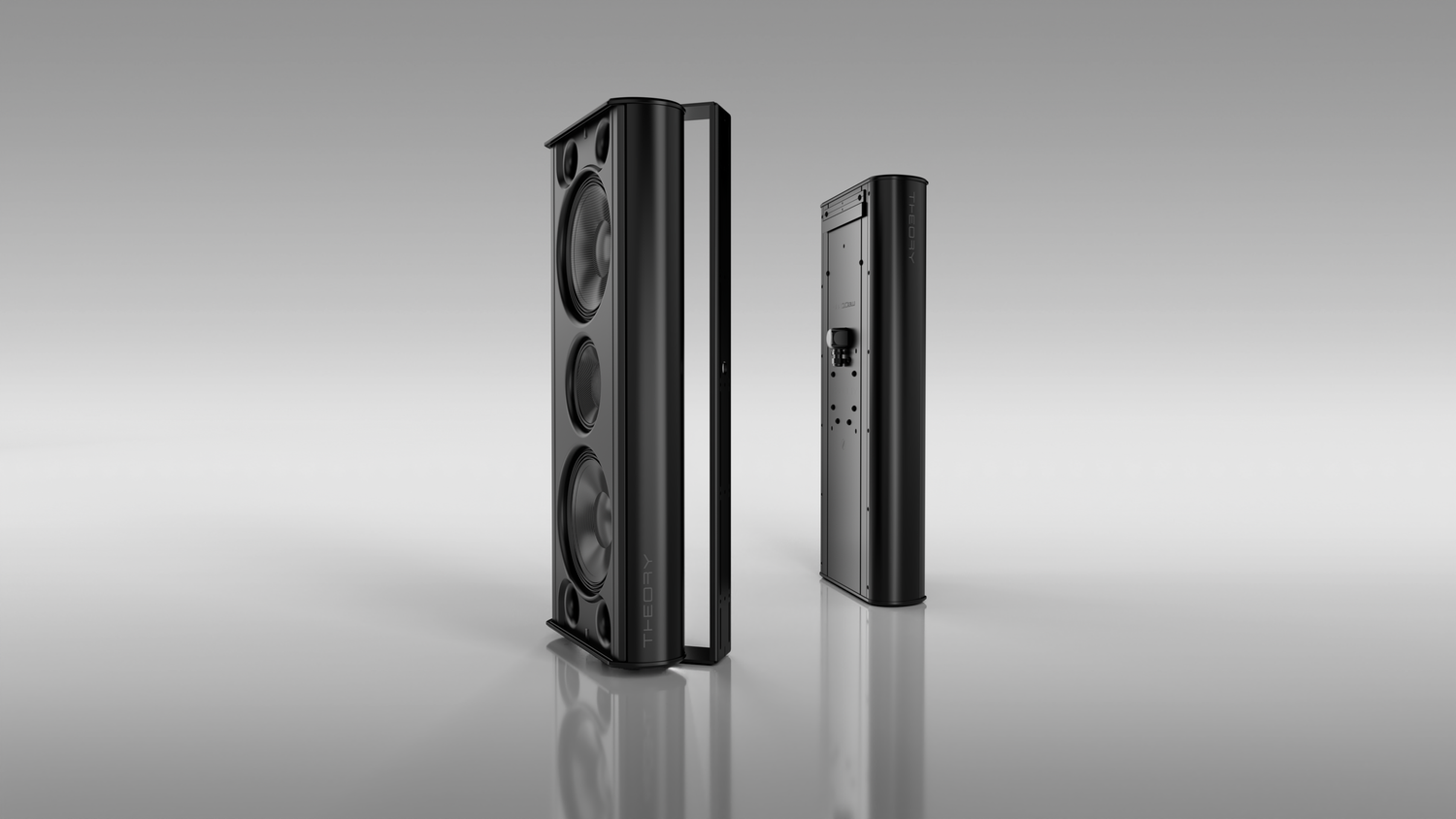

The Theory sb210aw is an all-weather, 4-ohm or 70V/100V surface mount loudspeaker with dual 10” carbon fiber LF drivers and a 6.5” coaxial driver.

Big brother to the remarkable sb25aw, the sb210aw offers wide-bandwidth, all-aluminum and stainless steel construction with mounting options to meet every possible installation need, including amusement parks, porches, patios, pool decks, backyards, restaurants, bars, hotels, houses of worship, marine, and anywhere broad, high-resolution, high-fidelity background or foreground sound is needed.

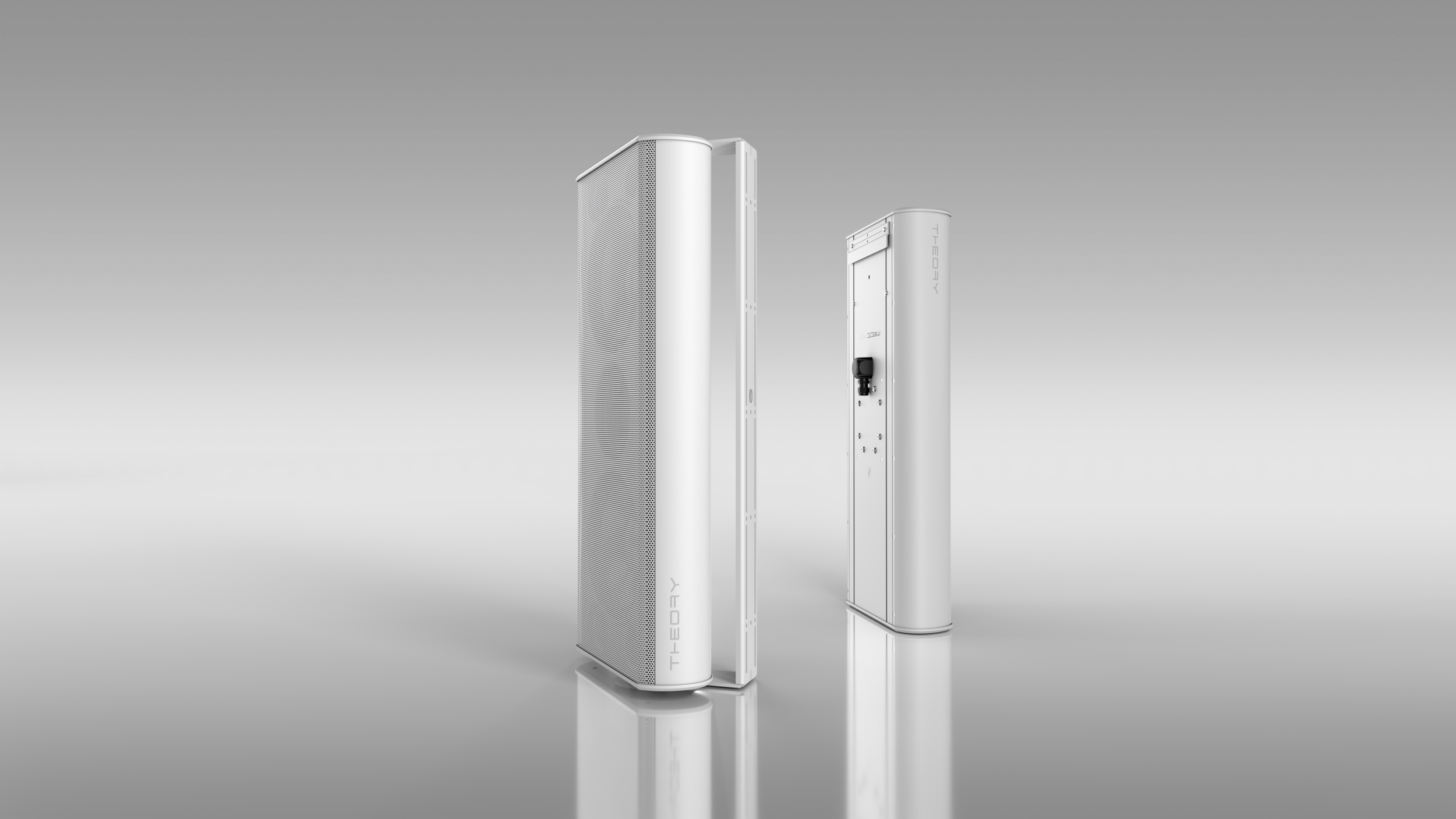

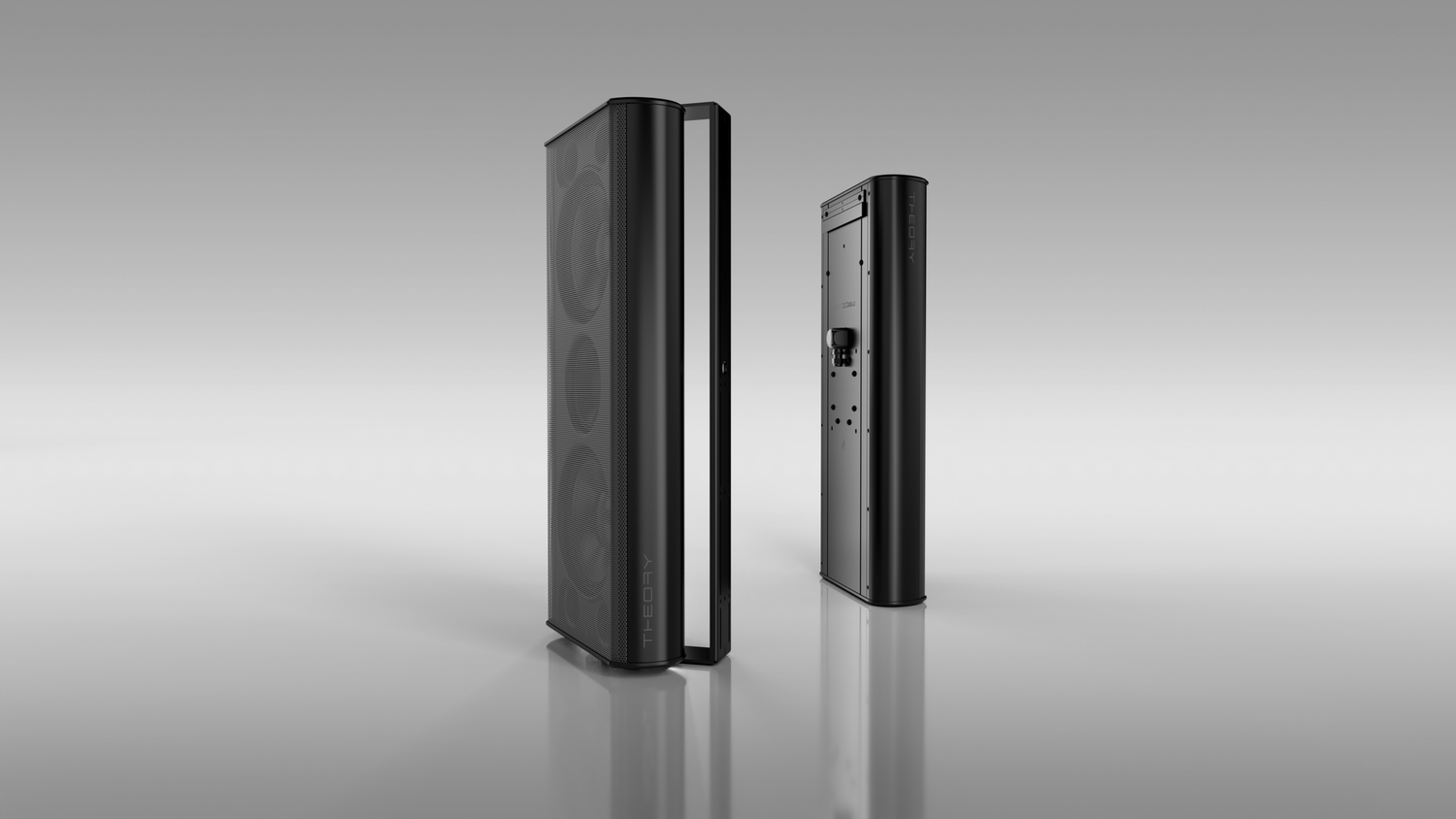

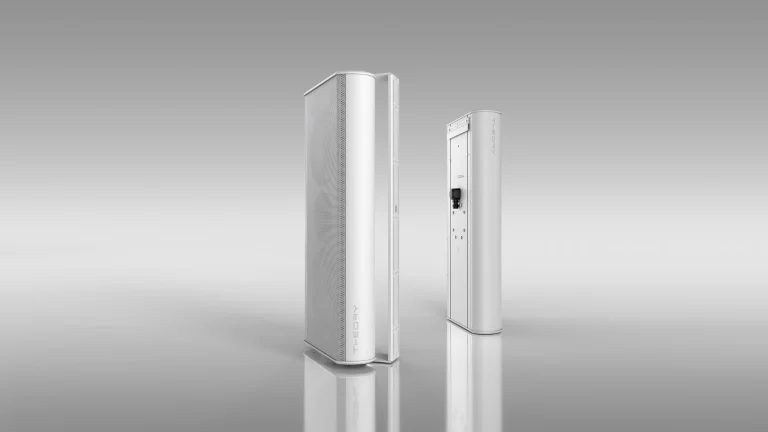

Available in black or white, the sb210aw incorporates a durable perforated stainless steel grille, water-tight loudspeaker wire entry point, selectable hi-z or low-z operating modes, and has an optional yoke mounting bracket available.

Capable of astonishing range and output, the less than 6” deep, sb210aw will have you rethinking how you incorporate sound in your next high-value project.

NEW! COMING SOON – Q4 2025

sb210aw SPECIFICATIONS

Description:	Very High-Output Weather Resistant Surface Mount Loudspeaker
Operation:	Passive, Requires 1 Theory Loudspeaker Controller Amp Channel 4-ohm or 70V/100V Operation, Selectable
DSP Requirements:	Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers:	2 x 10″ Theory Carbon Fiber Low Frequency Drivers 1 x 6.5″ THEORY Coaxial Driver: 6.5” Carbon Fiber Low Frequency Driver 1.4″ THEORY AdvancedPoly™ Compression Driver
Enclosure:	Powder Coated Extruded and Machined Aluminum, Perforated Aluminum Grille
Terminals:	Euroblock Connector with Parallel Output
Outdoor Capability:	Indoor and Outdoor Use

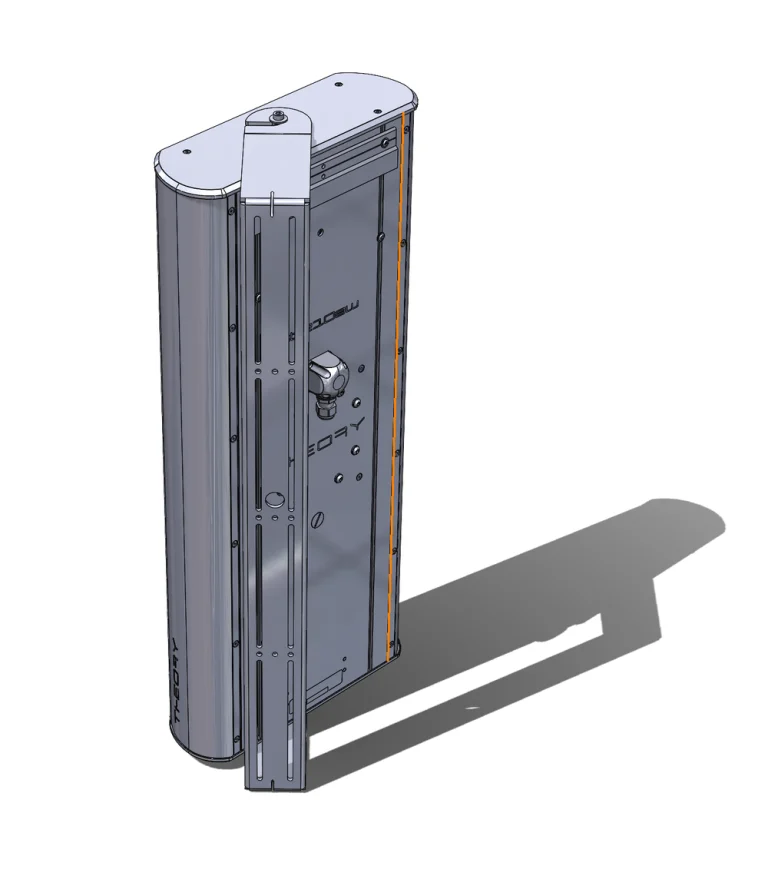

Mounting Points:	Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M6 Captive Nuts Included Z-Clips Optional Yoke Bracket
Bandwidth:	60Hz – 23kHz, -3dB 53Hz -23kHz, -6dB 45Hz-24kHz, -10dB (Corrolates to subjective perception)
Coverage:	125 Degrees Conical 140 Degrees Conical (-12dB @ 12kHz)
Sensitivity:	98dB (LF); 108dB (HF) SPL/2.83V/1m
Power Handling:	400W (AES); 800W (Continuous); 1600W (Peak)
Minimum Recommended Power:	125W rms
Maximum Output:	124dB / 1m (based on AES power rating) 130dB SPL / 1m (peak)
Nominal Impedance:	4-ohms; Hi-Z (70V/100V) Selectable
Transformer Taps:	150W, 75W, 37.5W, (18W, 70V)
Colors:	Black, White

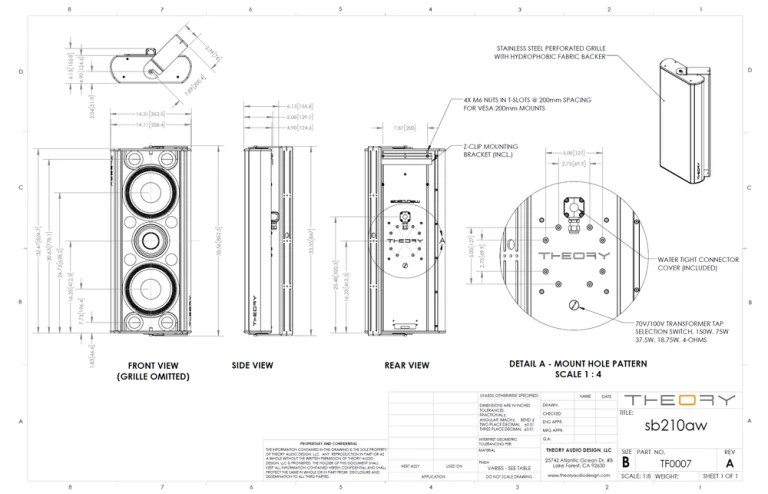

Dimensions:	32.5″ H x 14.3″ W x 4.9″ D (825mm H x 364mm W x 125mm D)
Total Installed Depth (Z-clip Mount):	5.1″ D (130mm) Including Z-Clip Mounting Brackets
Net Weight:	49.5 lbs. (22.5 kg)
Included Accessories:	Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting sb210aw Waterproof Terminal Cover
Optional Accessories:	sb210aw Yoke Bracket Mount Hole Patterns: 2.75” x 5.0” HORIZONTAL AND VERTICAL
Compatible 3rd Party Mounts:	Adaptive Technologies Multimount MM-022-BT Wall Multi-Mount Adaptive Technologies Multimount MM-024 Wall Pan and Tilt Mount Adaptive Technologies Multimount WM-0-15-60 Wall Extendable Pan and Tilt Mount Adaptive Technologies Multimount MM-018 Ceiling Pan and Tilt Mount Adaptive Technologies Multimount MM-3RDX-18 Ceiling Pan and Tilt Mount

sb210aw MEASUREMENTS

(All measurements made with Klippel Near Field Scanner in free space)

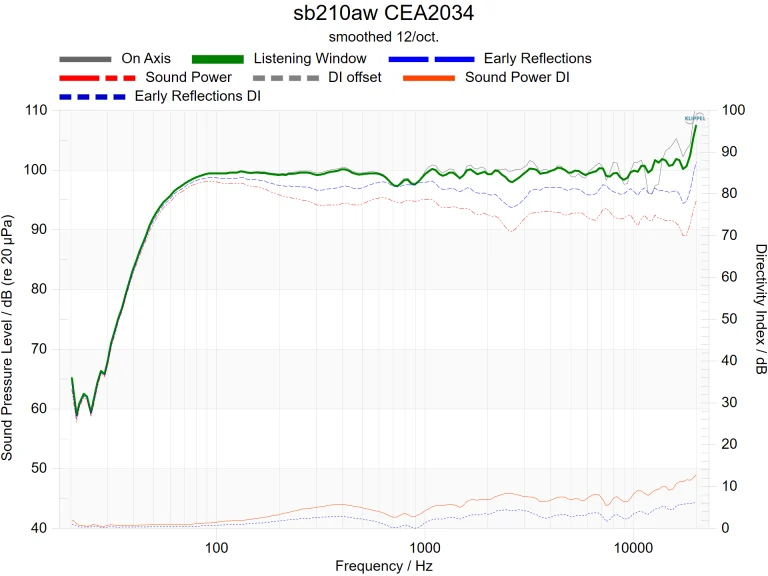

SMOOTH. ACCURATE. EXTENDED.

The CEA2034 or “Spinorama” data encapsulates the performance of a loudspeaker in a typical room. The sb210aw “Listening Window” response is ruler-flat, exactly the response that delivers accurate timbre, unmatched detail and coherence to the listener’s ears.

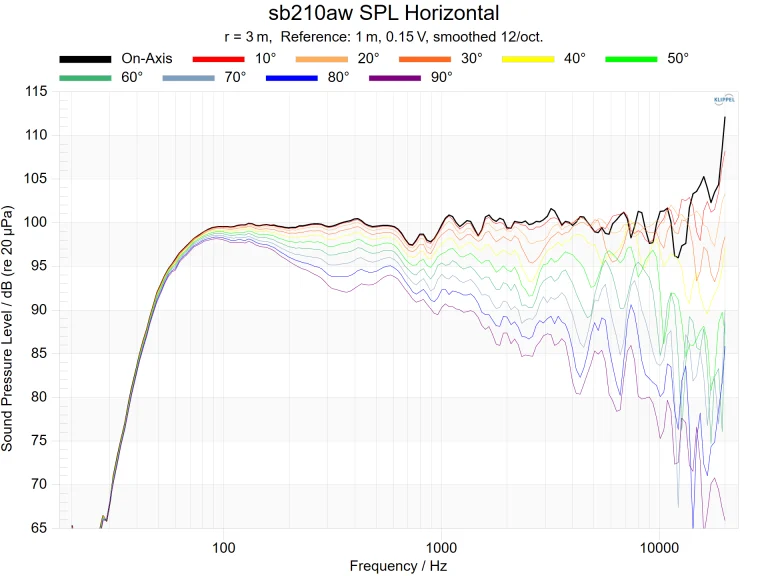

ACCURATE ALL THE WAY TO NINETY.

The sb210aw horizontal off-axis response is predictable and smooth all the way to 90 degrees.

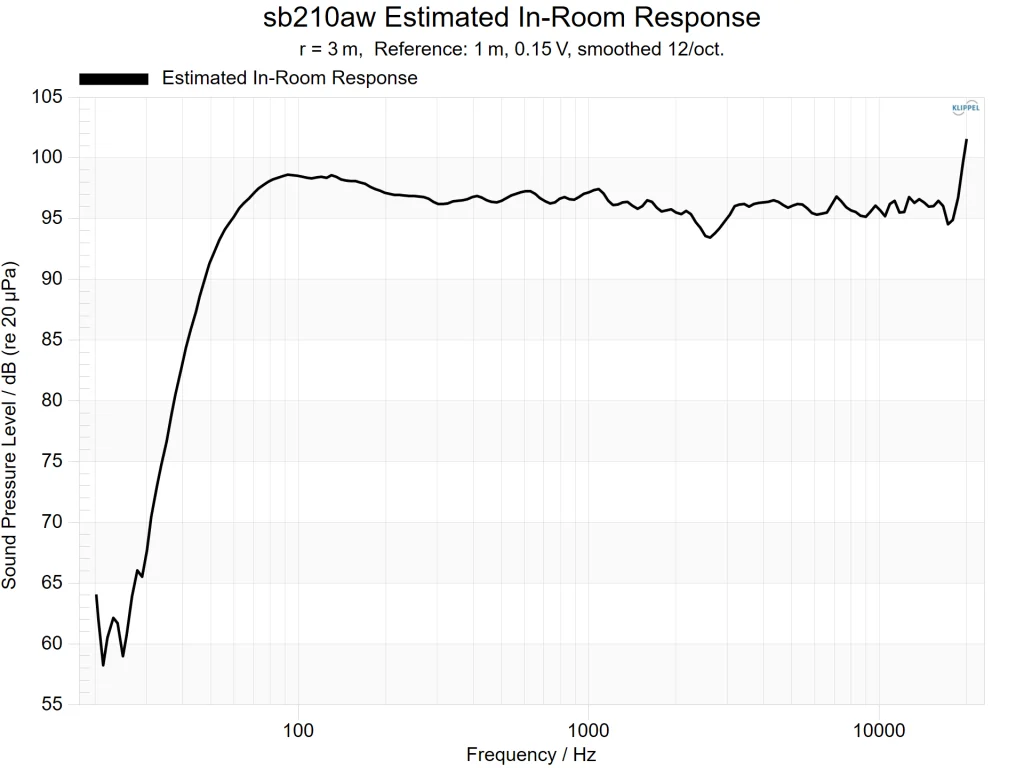

ROOM WITH A VIEW

The sb210aw CEA 20234 predicted in-room response shows the benefits of its conical coverage: uniform, smooth, extended and accurate in-room (reverberant field included) frequency response. Smooth in-room response such as this sounds natural, uncolored and detailed.

AS TALL AS IT IS WIDE.

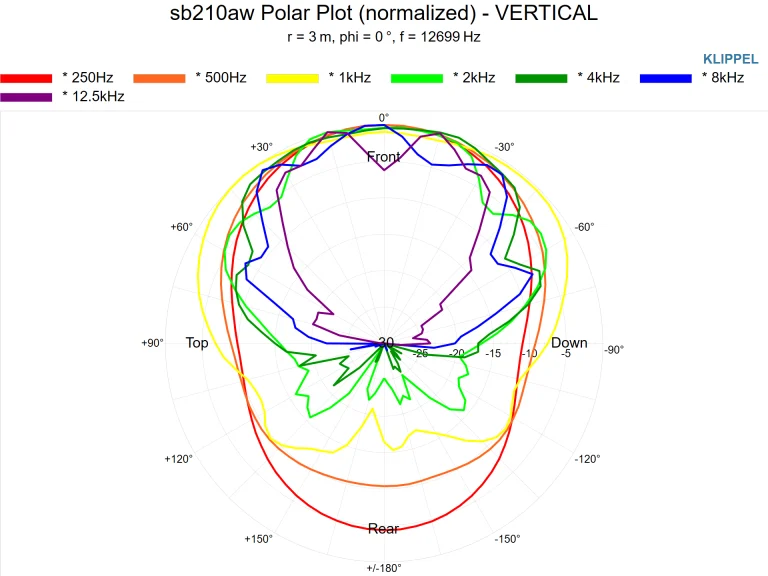

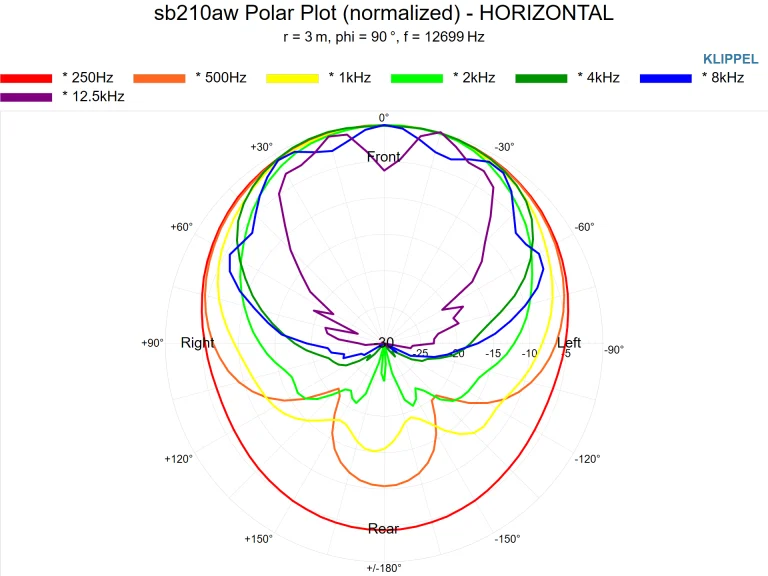

Notice that the sb210aw’s horizontal (left) and vertical (below left) polar responses indicate the same “coverage” of the audience. This is a result of its clever conical dispersion pattern. This means that the sb210aw can be used in portrait or landscape orientations with the same optimum results. Perfect for pairing with today’s increasingly popular “video wall” displays.

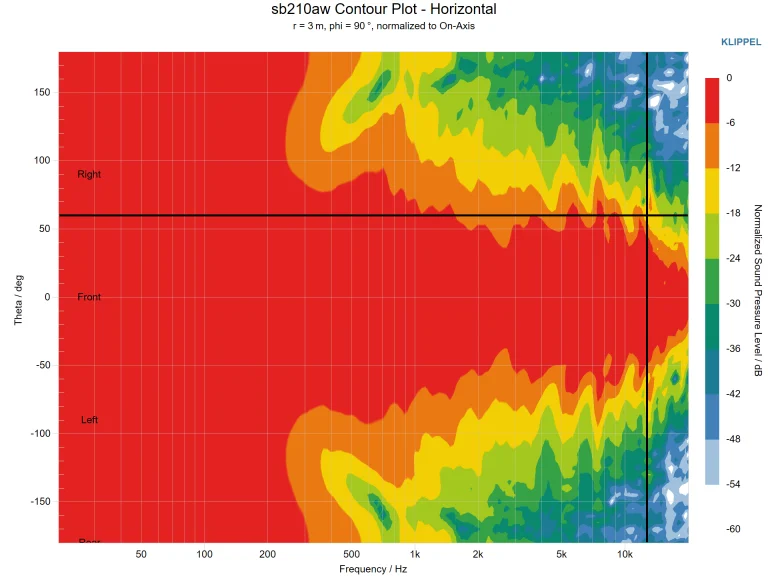

EVEN THE CHEAP SEATS HEAR CLEAN, DETAILED SOUND.

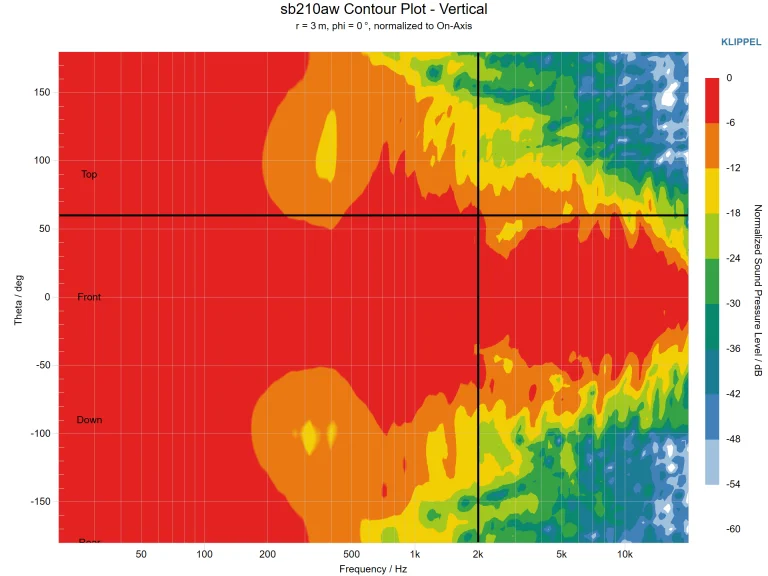

The “Directivity Contour Plot” shows the speaker’s dispersion characteristics using color to represent output magnitude. A quick inspection of the sb210aw’s contour plot reveals its very wide, but very uniform dispersion.

BUT! Even more importantly, notice that the VERTICAL coverage exactly matches the HORIZONTAL – meaning the speaker can be used in any orientation with the same stellar results.

Wide dispersion produces a reverberant field that is in harmony with the direct field insuring clean, high resolution sound literally everywhere. Your ear-brain system is not confused by reverberation that is of much lower fidelity than the direct sound. The improvement in perceived sound quality is not subtle.

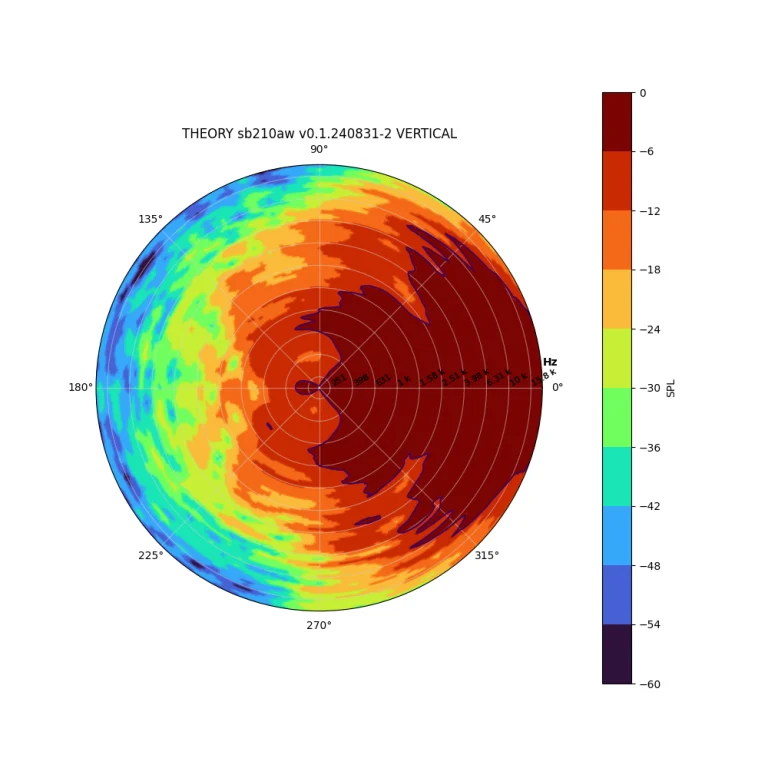

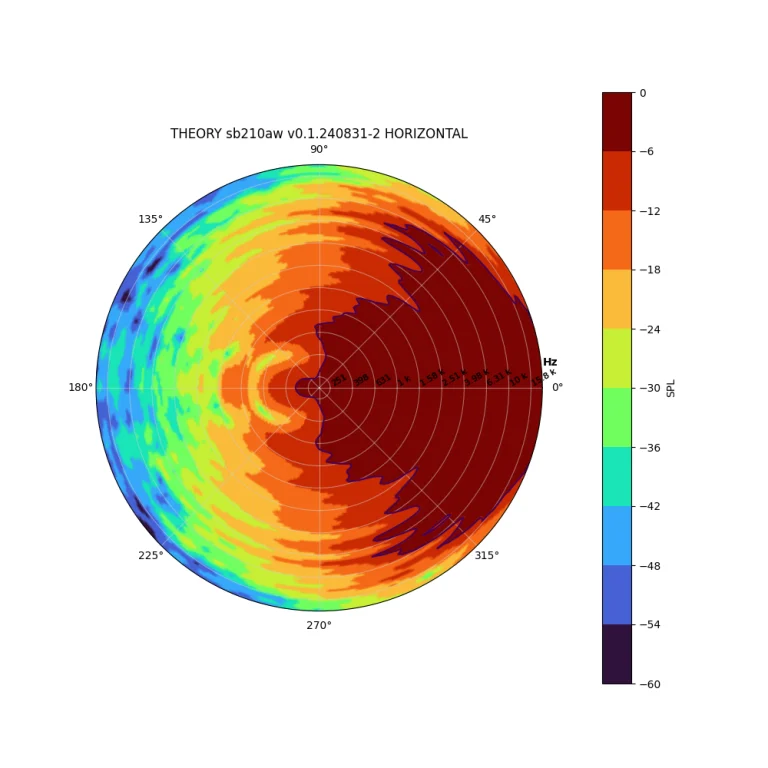

AS ABOVE, MORE INTUITIVELY RENDERED.

Another “view” of the sb210aw’s wide and genuinely conical coverage. It doesn’t get much better than this.

LISTEN WITH YOUR EYES.

sb210aw ACCESSORIES

YOU’RE INVITED TO THE (3rd) PARTY.

The sb210aw ships with included z-clip flat surface mount brackets but also has integral mount hole patterns for several high-quality third-party speaker mounts. Don’t be surprised if you find yourself using this highly capable slender speaker everywhere.
